Specialized in manufacturing series of plate heat exchanger

Technical Strength & Innovation Capability

Possessing a professional R&D team, constantly introducing competitive new products.

Quality Control & Reliability Integrity

Possessing a professional R&D team, constantly introducing competitive new products.

Customer Service & Solution Capability

Providing personalized solutions and professional technical support, closely collaborating with customers to meet their needs.

Suzhou Hengliu Machinery Equipment Co., Ltd. is an enterprise specialized in manufacturing series of plate heat exchanger.

The company has the abundant technical force, specializing in the production of removable plate heat exchanger, brazed plate heat exchanger, fully welded plate heat exchanger, heat exchanger plate, gasket; Its products are widely used in chemical, fertilizer, pharmaceutical, oil, steel, alcohol, food, beverages, printing and dyeing, electricity, painting, electronic screen, rubber, house heating, hotel and other departments, It also can meet the need of heating, cooling, condensation, heat recovery and various technological requirements.

The company now has a professional technical innovation team and professional after-sales personnel. The company′ S has multiple professional and advanced CNC and automated production equipment, and has obtained a number of professional certificates and patents.

The company has a professional foreign trade team and has trade cooperation with various regions. Some global partners conducted on-site inspections of the production plants and were very satisfied with the inspection results and established long-term strategic cooperative relationships with our company.

Hot Product

Plate Heat Exchanger

Plate heat exchanger is a new type of high efficiency heat exchanger which is composed of a series of metal sheet (heat exchange plate bundle) and frame with a certain corrugated shape. The heat transfer plate and the sealing gasket are composed of a plate bundle. The four corners of the heat transfer plate are provided with corner holes. The sealing gasket and the heat transfer plate are installed in the frame between the fixed pressing plate and the active pressing plate and are clamped by clamping bolts.

Refrigeration: Used as condensers and evaporators.

Hvac: intermediate heat exchangers used with boilers, intermediate heat exchangers in high-ris...

Chemical industry: soda ash industry, synthetic ammonia, alcohol fermentation, resin synthesis...

Metallurgical industry: aluminate mother liquor heating or cooling, steelmaking process cooling, etc.

Machinery industry: all kinds of quenching liquid cooling, reducer lubricating oil cooling.

Its products are widely used in chemical, fertilizer, pharmaceutical, oil, steel, alcohol, food, beverages, printing and dyeing, electricity, painting, electronic screen, rubber, house heating, hotel and other departments, It also can meet the need of heating, cooling, condensation, heat recovery and various technological requirements.

Removable Plate Heat Exchanger

Removable Plate Heat Exchanger

The company now has a professional technical innovation team and professional after-sales personnel.
Read More

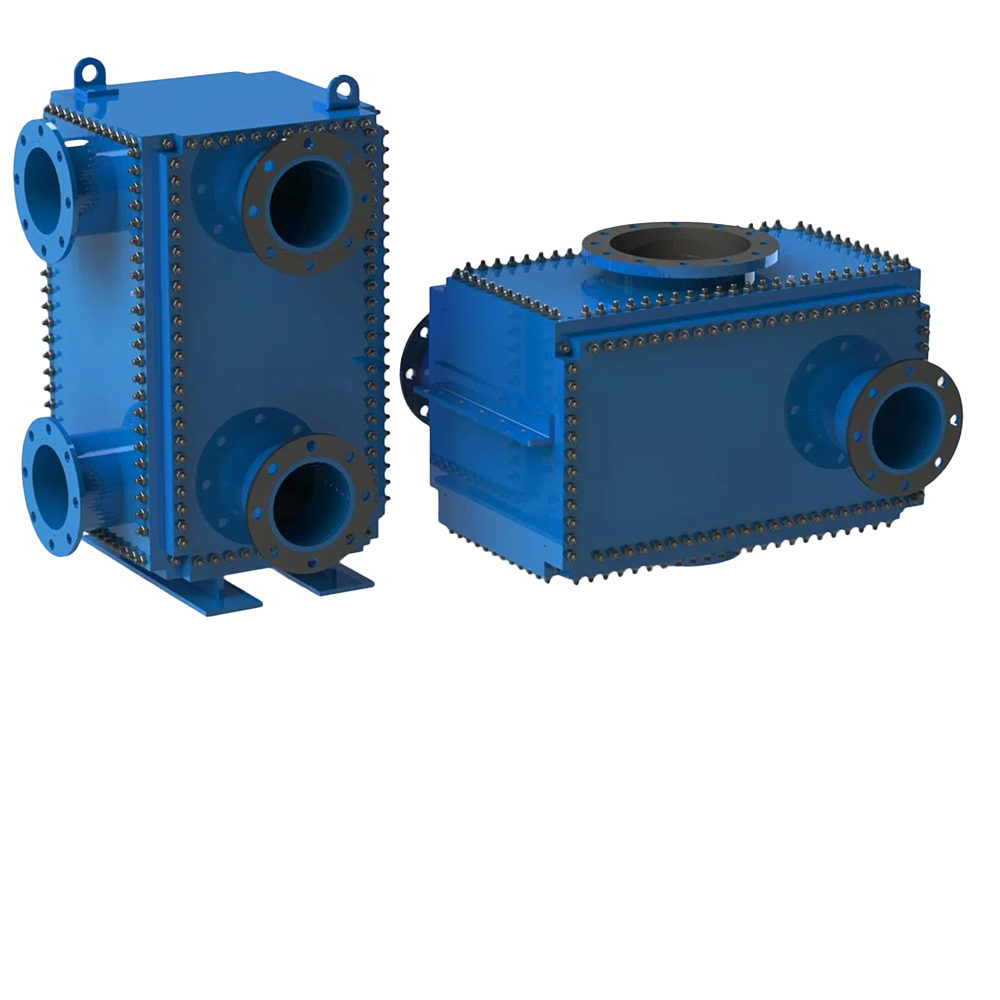

Four-Door Plate Heat Exchange

Four-Door Plate Heat Exchange

Structural Features
Welded Shell: Typically composed of two parallel square or rectangular shells, the interior contains a series of parallel tube bundles or plates for heat transfer. This configuration results in a more compact heat exchanger with a smaller footprint.
Plate Structure: Channels are formed by welding adjacent plates together. The plates often feature chevron (herringbone) or other corrugated patterns to enhance turbulence and improve heat transfer efficiency.
Detachable Design: The shell of some four-side fully welded heat exchangers utilizes a six-face detachable structure. In case of plate blockage, the surrounding cover plates can be removed for cleaning, meeting the process requirements for both mechanical and chemical cleaning.
Performance Advantages
High Temperature and Pressure Resistance: The welded structure completely eliminates the limitations of gasket sealing. It can withstand high pressures (typically above 4.0 MPa) and temperatures up to 800℃, making it suitable for harsh operating conditions.
High Heat Transfer Efficiency: The corrugated plate design creates high turbulence within the channels. The heat transfer coefficient is 3 to 5 times that of shell-and-tube heat exchangers, and the volume can be reduced by 30%-50% for the same heat exchange capacity.
Strong Corrosion Resistance: The all-metal welded structure avoids the aging issues associated with rubber gaskets. Special materials such as Hastelloy and 254SMO can be selected to handle corrosive media like acids and high-salt solutions.
Low Maintenance Costs: The gasket-free design eliminates the risk of leakage. The monolithic welded structure reduces vibration damage, resulting in longer maintenance cycles and lower life-cycle costs.
Flexible Flow Channel Configuration: Supports single-pass/multi-pass and symmetric/asymmetric flow channel designs. It can adapt to various flow rate ratios and temperature difference requirements (e.g., flow rate ratios can range from 1:1 to 6:1).
Shell and Tube Heat Exchanger

Shell and Tube Heat Exchanger

The company now has a professional technical innovation team and professional after-sales personnel.
Read More
Spiral Heat Exchanger

Spiral Heat Exchanger

The company now has a professional technical innovation team and professional after-sales personnel.
Read More
Brazed Plate Heat Exchanger

Brazed Plate Heat Exchanger

The company now has a professional technical innovation team and professional after-sales personnel.
Read More
All Welded Plate Heat Exchanger

All Welded Plate Heat Exchanger

The company now has a professional technical innovation team and professional after-sales personnel.
Read More

We encourage innovative thinking and continuously seek improvement and breakthroughs to meet customer needs and lead industry development.

The company now has a professional technical innovation team and professional after-sales personnel.

The company now has a professional technical innovation team and professional after-sales personnel.

We always prioritize customers, listen to their needs, provide customized solutions, and ensure customer satisfaction remains paramount.

We value teamwork, encourage collaboration and communication among employees to achieve common goals and promote company development.

We are committed to pursuing excellence in quality and reliability, ensuring that our products and services always meet the high standards and expectations of our customers.

Customer-centric

We always prioritize customers, listen to their needs, provide customized solutions, and ensure customer satisfaction remains paramount.
Team Collaboration

We value teamwork, encourage collaboration and communication among employees to achieve common goals and promote company development.
Quality and Reliability

We are committed to pursuing excellence in quality and reliability, ensuring that our products and services always meet the high standards and expectations of our customers.

The latest at Hengliu

Company News

Suzhou Hengliu Machinery Equipment Co., Ltd. specializes in manufacturing plate heat exchangers. Our product line includes removable plate heat exchangers, brazed plate heat exchangers, fully welded plate heat exchangers, four-side removable plate-and-frame heat exchangers, spiral plate heat exchangers, plate-and-shell heat exchangers, wound tube heat exchangers and shell-and-tube heat exchangers.

05 November 2025

Company News

Suzhou Hengliu Machinery Equipment Co., Ltd. is an enterprise specialized in manufacturing series of plate heat exchanger, The company has the abundant technical force, specializing in the production of removable plate heat exchanger, brazed plate heat exchanger, fully welded plate heat exchanger, h

12 August 2024

Company News

12 August 2024
